Check Specification & Cross-references
Fortpro is a trusted leader in the development and manufacturing of premium-quality truck parts designed to meet the demands of semi-trucks and heavy-duty trucks. Renowned for innovation, durability, and reliability, Fortpro products are engineered to enhance performance, safety, and efficiency across a wide range of trucking applications.
Whether you're seeking OEM replacement parts or upgrades, Fortpro provides a diverse selection of components backed by a global reputation for quality and innovation. Trust Fortpro for the parts you need to keep your vehicles on the road longer and stronger.
| Basic Part Information | |||
|---|---|---|---|
| Product Line | Brakes | Category Name | Air Dryers |

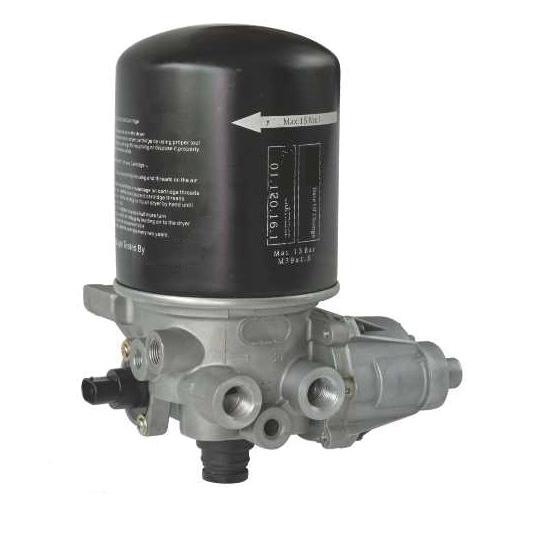

| Part Type | Air Brake Dryer | Model | SS-1200 (System Saver) |
| OEM Part Number | R955205 | ||
| Application/Fitment Attributes | |||
| Application Type | Heavy Duty Trucks, Semi-Trucks | Body Mounting Type | 1/2-13 UNC-2B (3x) |
| Cartridge Thread Type | M39 x 1.5-6H RH | Cartridge Type | Standard |
| Control Port Size | 1/4 in.-18 NPT | Delivery Port 1 Size | 1/2-14 NPT |
| Heater Connector Type | Metri-Pack Sealed Connector (Male) | Lower Mounting Bracket Type | 1/2-13 UNC-2B (3X) Flange Mount |
| Purge Exhaust Port Type | Standard | Purge Valve Type | Soft Seat |
| Supply Port Size | 1/2 in.-14 NPT | ||
| Technical/Performance Attributes | |||
| Minimum Operating Temperature | -40 deg. F (-40 deg. C) | Operating Voltage | 12V |
| Safety Valve Opening Pressure | 140 psi | Thermostat Power Rating (Watts) | 100W |
| Additional Information | |||
| Intended Application | For use in standard air brake applications on trucks, tractors, and buses | ||
- Replacement for Automann: 170955205
- Replacement for Meritor: R955205, R955205NX, R955205X
Dimensions Not Available.
