Saf-Holland is a well-known manufacturer of premium-quality commercial vehicle components, including their highly-regarded fifth-wheel coupling systems. Saf-Holland fifth wheels are engineered to provide safe, reliable, and efficient coupling between tractor units and trailers.
The SAF-HOLLAND Group is one of the leading international manufacturers of chassis-related assemblies and components for trailers, trucks and buses. The product range includes axle and suspension systems, fifth wheels, coupling systems, kingpins and landing legs. These products are known worldwide under the brands SAF, HOLLAND, HALDEX, KLL, NEWAY, TRAILERMASTER, V.ORLANDI and YORK.
| Basic Part Information | |||
|---|---|---|---|
| Product Line | Chassis & Suspension | Category Name | Fifth Wheels & Parts |
| Part Type | 5th Wheel | Alternate Part Name | Fifth Wheel Trailer Hitch Mount Plate, Fifth Wheel with Fixed Mount |
| Application/Fitment Attributes | |||
| Application Type | Heavy Duty Trucks, Semi-Trucks, Trailers, Tractors | Kingpin Diameter Compatibility | 2.00 in. |
| Mounting Interface | Bracket Assembly | Mounting Type | Stationary |
| Series | HOLLAND FW35 | ||

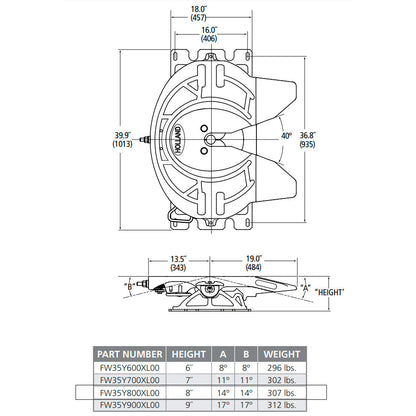

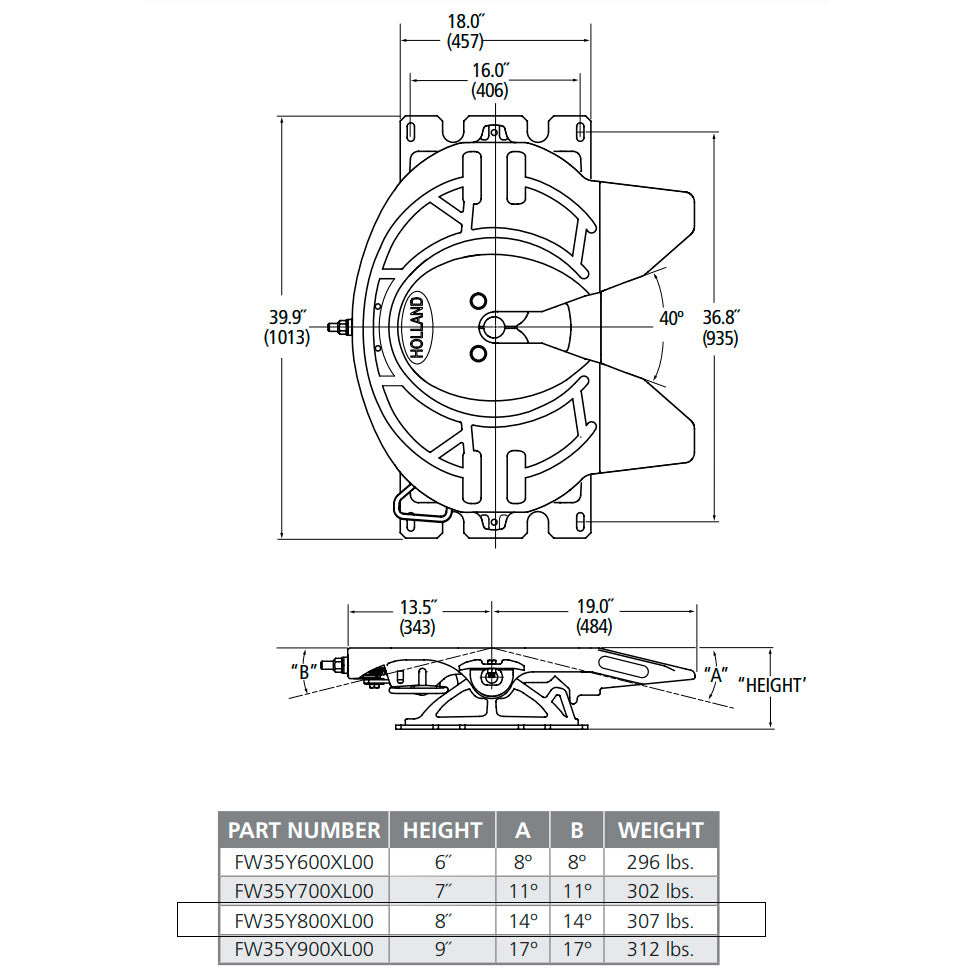

| Dimensional/Physical Attributes | |||
| Material | Cast Steel | Overall Height | 7.80 in. |
| Overall Length | 35.00 in. | Overall Width | 39.90 in. |
| Technical/Performance Attributes | |||
| Duty Rating | Moderate to severe, on and off highway | Lubrication Type | Standard |

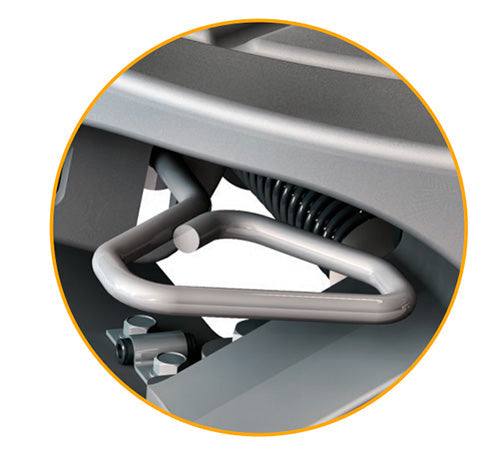

| Maximum Vertical Load Capacity | 55.000 lbs. | Release Type | Left-Hand Release |
| Packaging / Logistics Attributes: | |||
| Net Weight | 307 lb. | ||
| Additional Information | |||
| Intended Application | "
|
||
- Original Equipment Manufacturer: SAF-HOLLAND

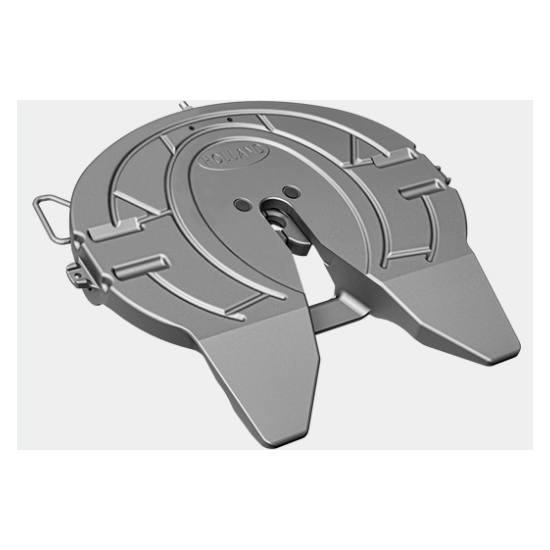

- Top Plate OEM Number:: XA-351-A-L-P

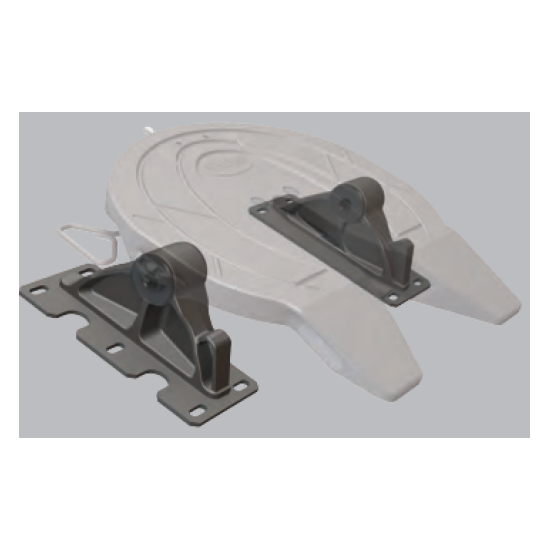

- Foot Mount OEM Number:: RK-Y800

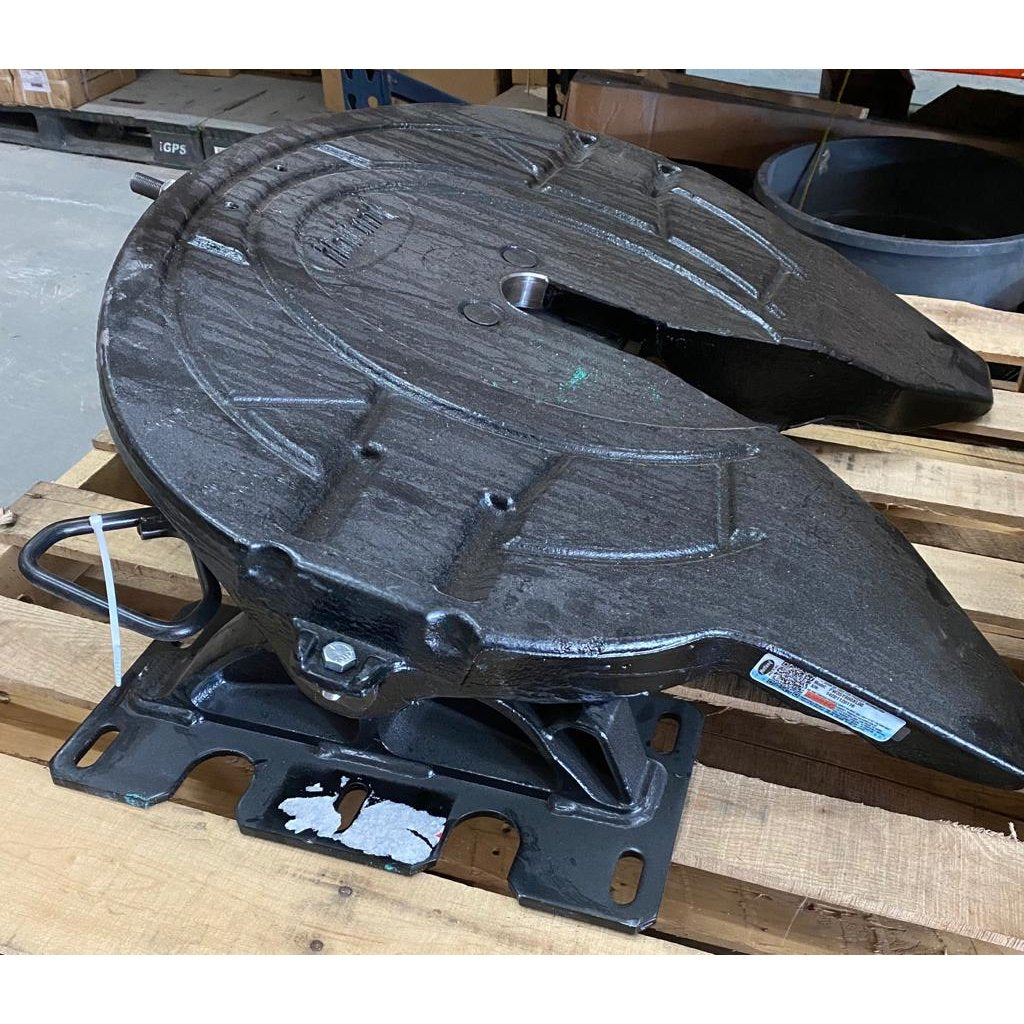

- Assembly OEM Part Number:: FW35X800XL00
Package: 18 in x 36 in x 40 in
Weight: 307.0 lb
