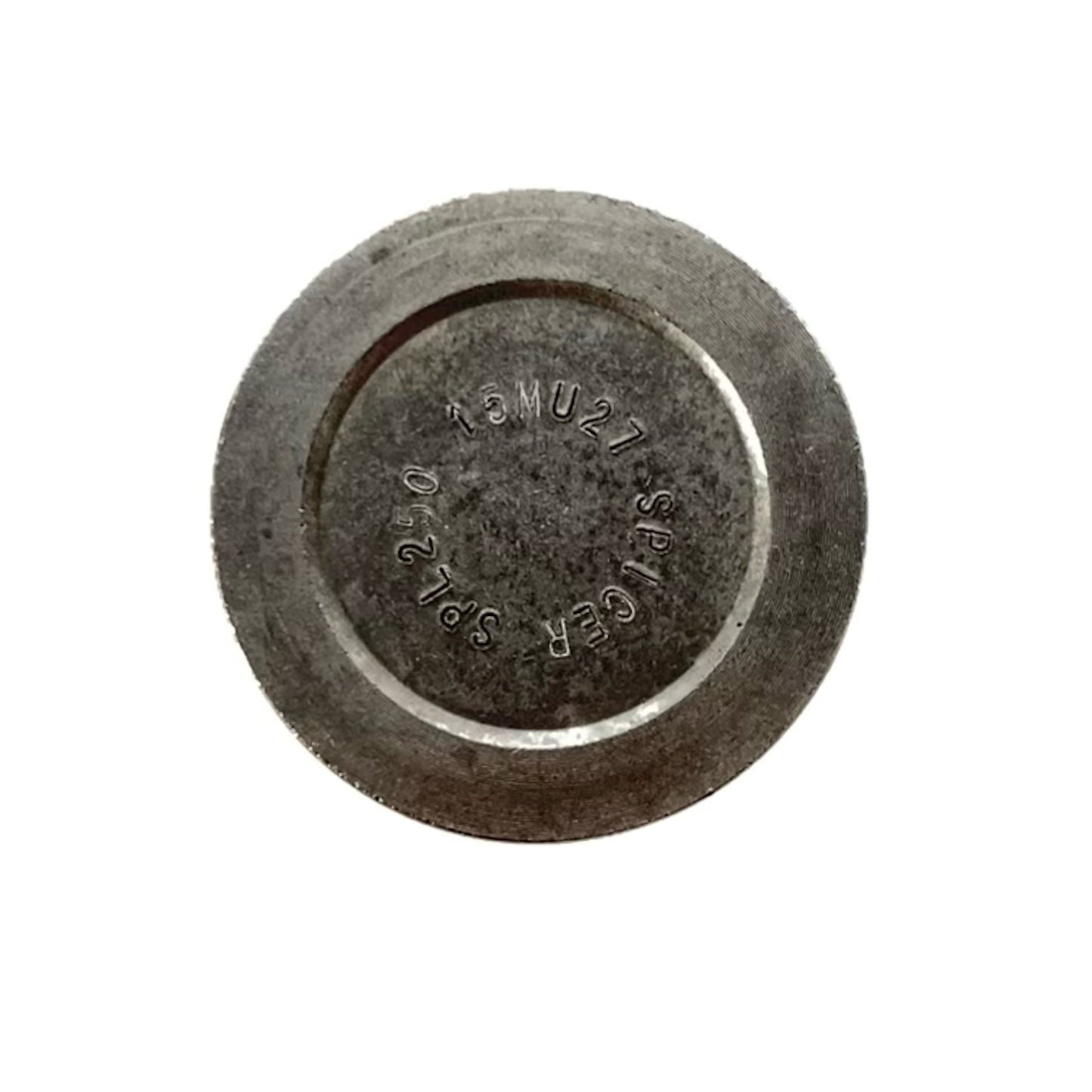

Dana Spicer SPL250-3X U Joint For SPL250 Series

Dana Spicer SPL250-3X U Joint For SPL250 Series

SKU: SPL250-3X

Availability: 32 in stock

$153.97 USD
$175.45 USD $153.97 USD
Sale Sold out
Shipping calculated at checkout.

Compatibility & Purchase Guidelines

  • Verify OEM Compatibility: Always match your OEM part number with our cross-reference list before purchasing to ensure proper fitment.
  • Avoid Returns: Do not rely solely on visual similarity. Parts may look identical but differ in specifications. Confirm compatibility using part numbers.
  • Truck Brand Reference Disclaimer: Mentioned truck brands are provided for general reference only and do not guarantee universal compatibility across all models.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.



Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must met the conditions stablished in our Terms & Conditions.

To start a return, you can contact us at admin@maxitrucks.com.

Key Features & Benefits

  • Made with high-quality materials, heavy-duty forging and precision bearings to ensure durability and reliable operation
  • Designed to withstand high loads and severe operating conditions, including vibrations, impacts, and sudden changes in direction.
  • Compatible with SPL250 series driveshafts and can be used on various heavy vehicles and construction equipment.
  • Robust and reliable for heavy transmission applications in heavy vehicles and other equipment
  • Bearing Cap diameter: 2.362"
View full details

The Dana Spicer SPL250-3X U-joint is a heavy-duty universal joint designed for use on heavy-duty vehicles with heavy-drive applications, such as dump trucks, highway tractors, buses, and construction equipment. This universal joint is typically used on driveshafts with an SPL250 series.



Dana Spicer Logo

Dana is a global leader with 100+ years of expertise in drivetrain innovation. We engineer purpose-built components for light to heavy-duty vehicles through rigorous data and testing. From Spicer to our Spicer Select line for aging fleets, every product meets world-class engineering standards to ensure reliability. We don't just manufacture parts; we deliver high-performance solutions that keep your business and the world in motion.

Basic Part Information
Product Line Driveline & Axles Category Name Driveline Components
Part Type Universal Joint Alternate Part Name U Joint
Application/Fitment Attributes
Application Type Semi-Trucks, Heavy Duty Trucks Series SPL250
Universal Joint Type Spring Tab Style VMRS Code 24002046
Dimensional/Physical Attributes
Material Steel Bearing Cap Diameter 2.362 in.
Bearing Cap Type Round Snap Ring Type SPRTAB
Spring Tab Distance 6.417 in.
Technical/Performance Attributes
Grease Fitting Location Center of Cross Greaseable Yes
Packaging / Logistics Attributes:
Net Weight 11.55 lb.
Additional Information
Bill Of Material
  • 1 Universal Joint
  • 4 Bearing Caps
  • 4 Drive Shaft Bolt (4 M12 X 1.25)
  • 4 Drive Shaft Bolt (M8 x 1.00in)
  • 2 Spring Tab
  • 1 Lube Fitting
Intended Application
  • Designed for heavy duty driveshafts utilizing yokes specifically manufactured for the SPRTAB retention style. Manufactured for high-torque drivetrain applications, with a focus on heavy-duty commercial vehicles, buses, and industrial/off-highway machinery. Its greaseable design and SPRTAB Style (Spring Tab) retention system ensure maximum durability, fatigue resistance, and operating efficiency under severe loading and vibration conditions.
  • Automann: 752.SPL250X, 752SPL250X
  • Dana : SPL250-3X, SPL2503X. 25-SPL250-3X, 25SPL2503X,
  • Neapco: 61250
  • Paccar: PAC5XL250X
Dimensions Not Available.
