Check Specification & Cross-references
Fortpro is a trusted leader in the development and manufacturing of premium-quality truck parts designed to meet the demands of semi-trucks and heavy-duty trucks. Renowned for innovation, durability, and reliability, Fortpro products are engineered to enhance performance, safety, and efficiency across a wide range of trucking applications.
Whether you're seeking OEM replacement parts or upgrades, Fortpro provides a diverse selection of components backed by a global reputation for quality and innovation. Trust Fortpro for the parts you need to keep your vehicles on the road longer and stronger.
- Brand: Fortpro
- Vehicle Type: Semi-Trucks / Heavy Trucks
- Product Department: Brakes
- Product category : Brake Chambers
- Part Type: Air Brake Chamber
- Also Known as: Brake Canister / Brake Can / Air Brake Canister / Brake Pod / Brake Pots

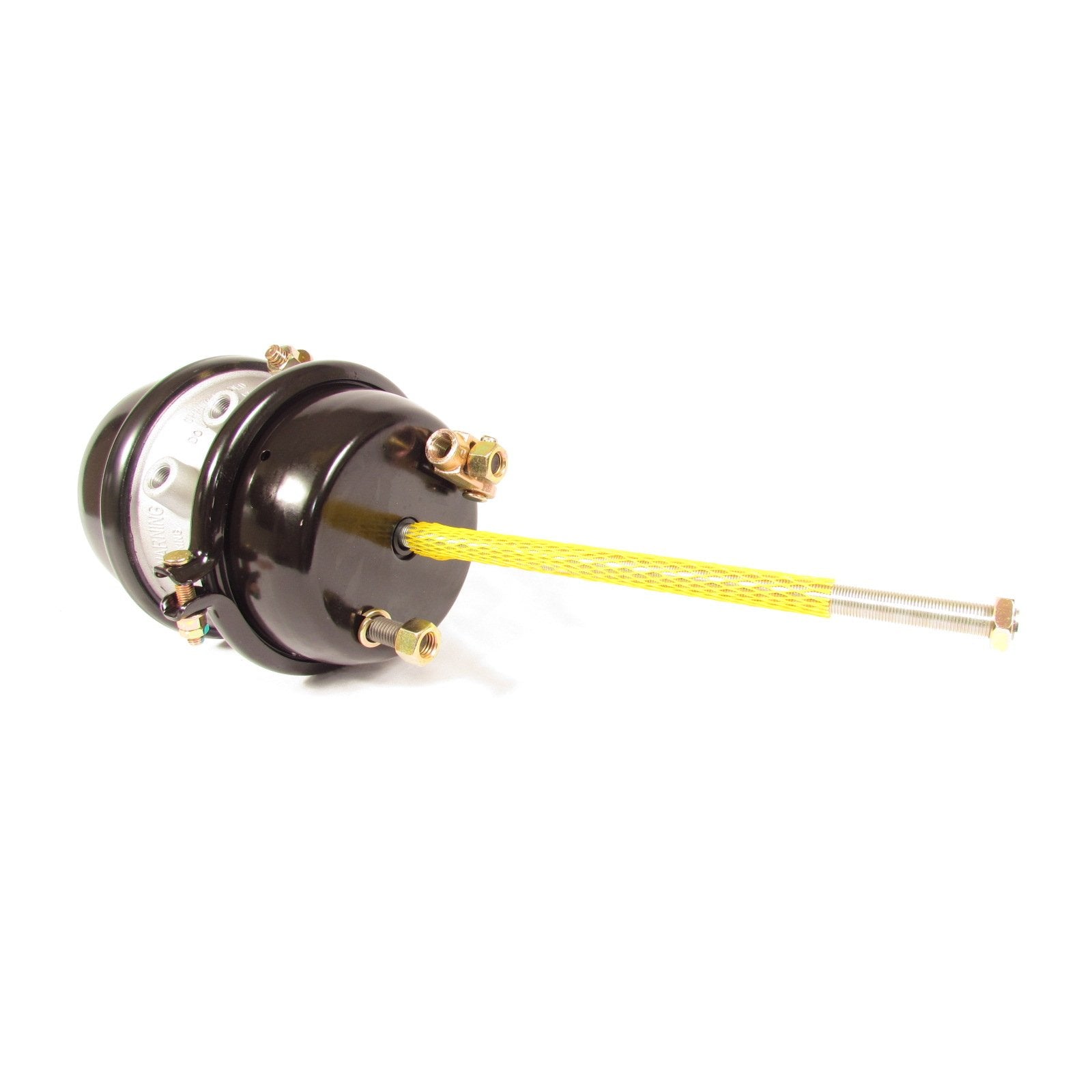

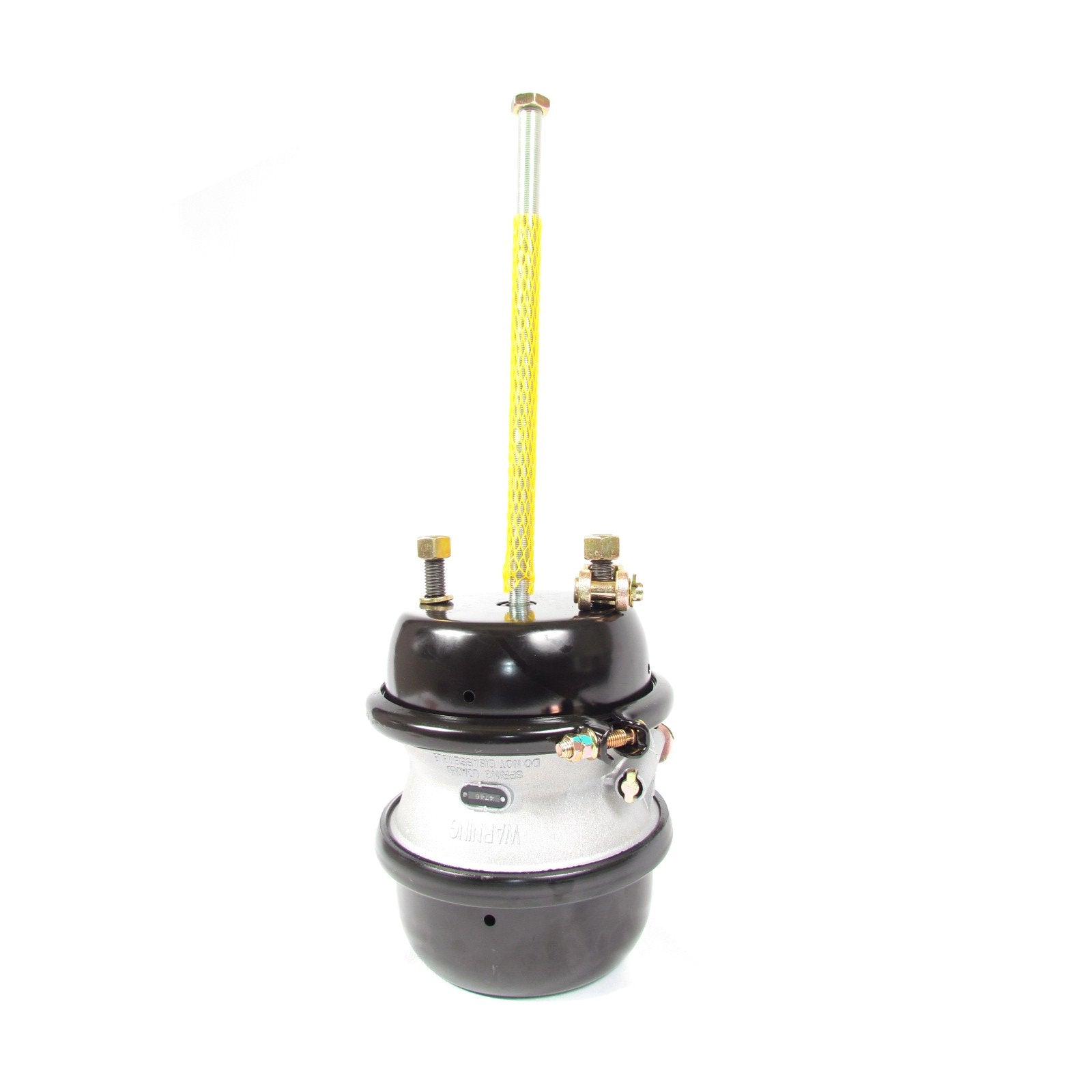

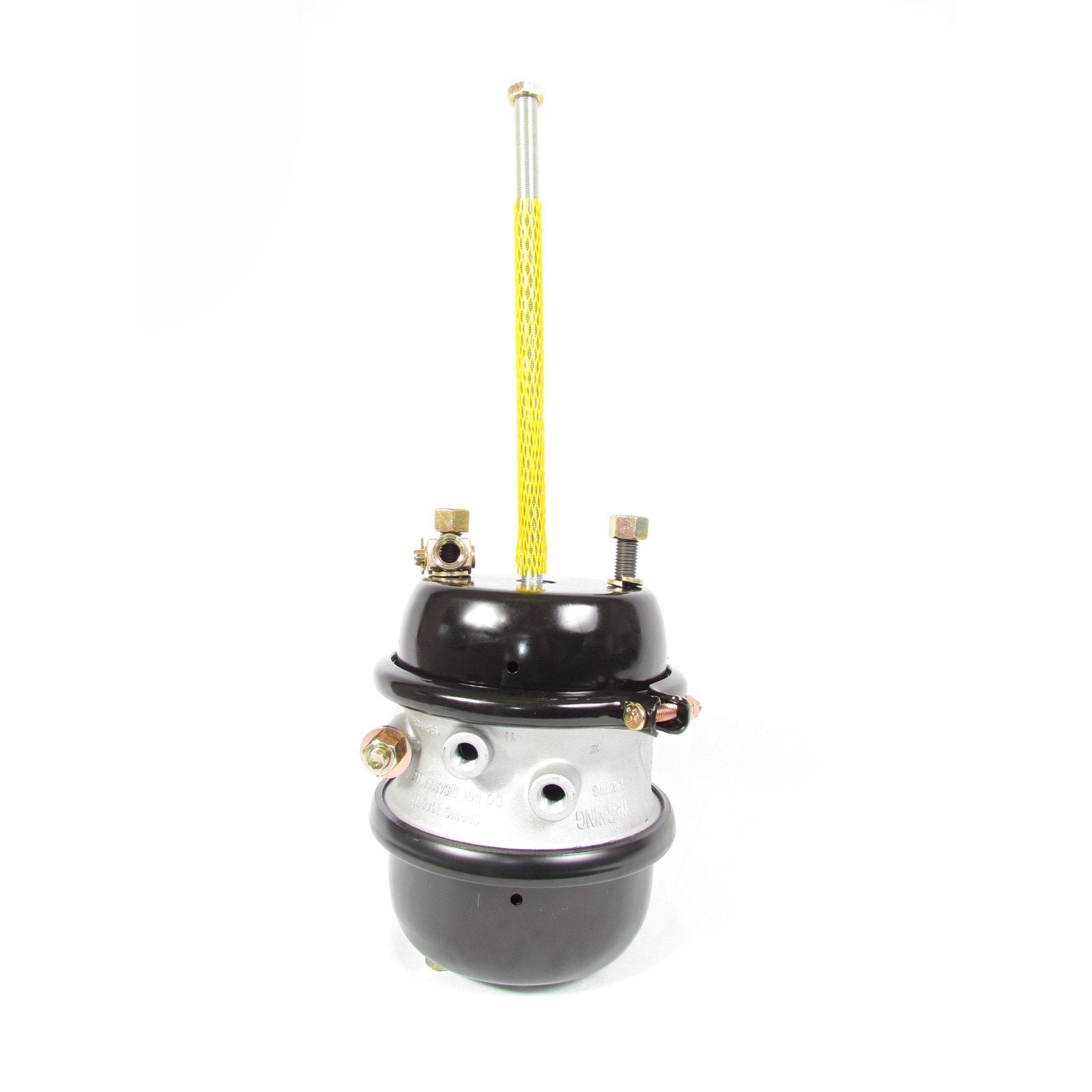

- Chamber Type: Spring Brake Chamber
- Model: Type 3030, T30/30, 3030, 30 30
- Stroke: Standard Stroke / Short Stroke
- Stroke Lenght: 2.50 in. (63.5 MM)
- Outside Diameter (O.D.): 8.30 in.
- Brake Type Support: Drum
- Serviceability: Sealed
- Push Rod Thread: 5/8-18 UNF-2A
- Push Rod Length: 12.00 in
- Service Port: 3/8-18 NPTF
- Emergency/Release Port: 3/8-18 NPTF
- Port Angle: 90°
- Clevis Included: Yes
- Clevis Mounting: Threaded
- Maximum Pressure: 150 PSI
- Mounting Bolt Thread: 5/8-11 UNC-2A
- Mounting Bolt Length: 1.50 in. (38.1 MM)
- Brake System Compatibility: S-Cam
- Chamber Style: Double Diaphragm
- Service Chamber Joint Type: Single Clamp Band
- Automann: 179SB3030
- Bendix: K049898, NT3030STD120
- Euclid: E-BC3030C
- MGM: 3232951, 3232951X
- TRP: SB3030CC
- OTR: OTR3030SB
- WA: WA3030T
Dimensions Not Available.
