Check Specification & Cross-references
Fortpro is a trusted leader in the development and manufacturing of premium-quality truck parts designed to meet the demands of semi-trucks and heavy-duty trucks. Renowned for innovation, durability, and reliability, Fortpro products are engineered to enhance performance, safety, and efficiency across a wide range of trucking applications.
Whether you're seeking OEM replacement parts or upgrades, Fortpro provides a diverse selection of components backed by a global reputation for quality and innovation. Trust Fortpro for the parts you need to keep your vehicles on the road longer and stronger.
- Brand: Fortpro
- Vehicle Type: Semi-Trucks / Heavy Trucks
- Product Department: Brakes
- Product category : Brake Chambers
- OEM Reference: 288803

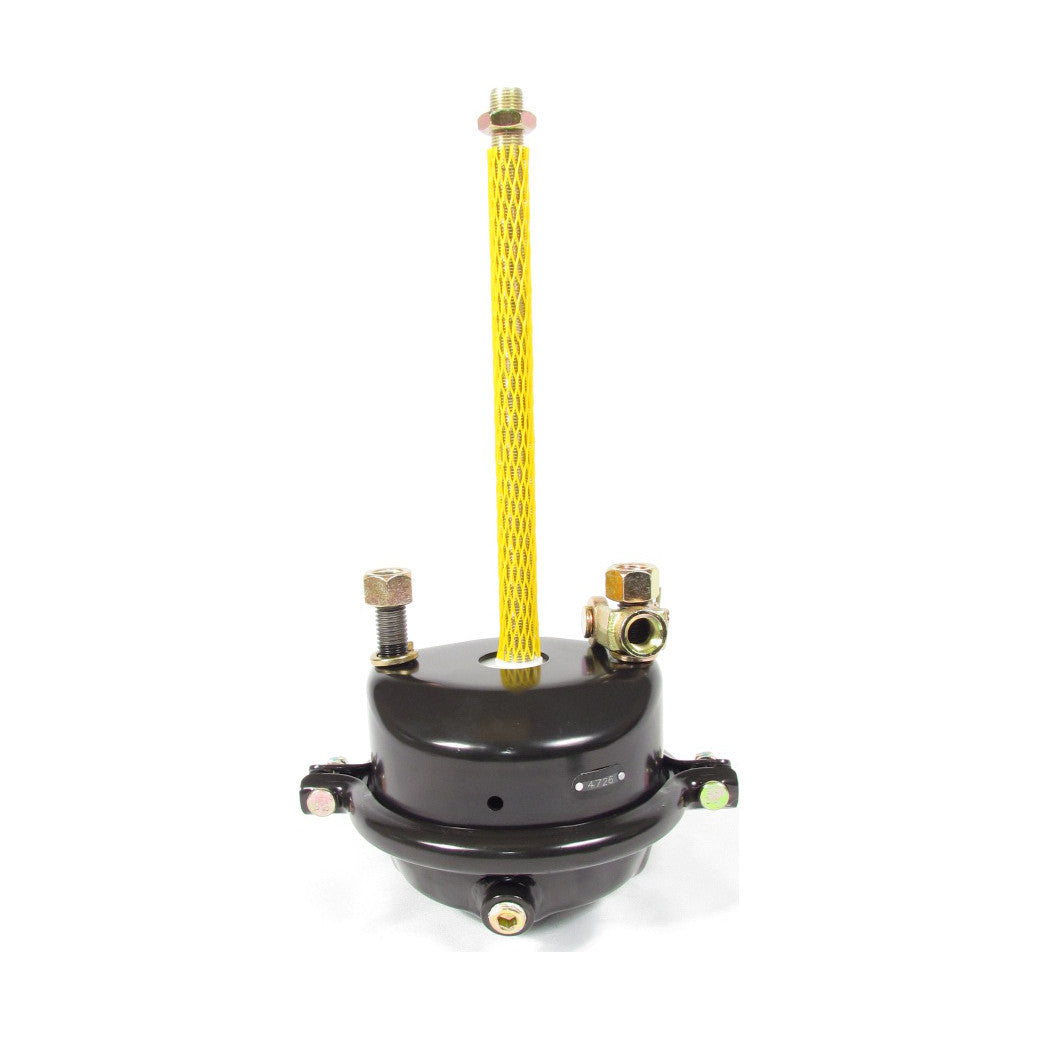

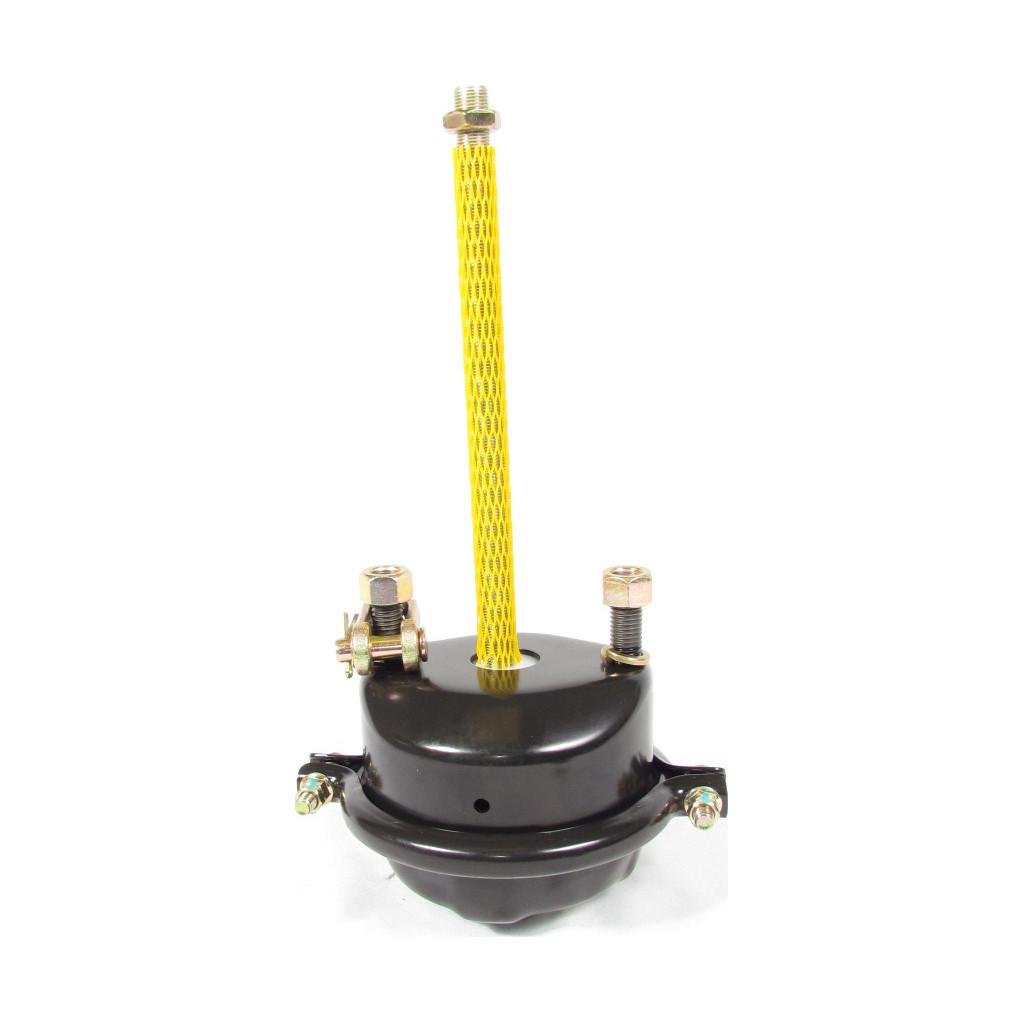

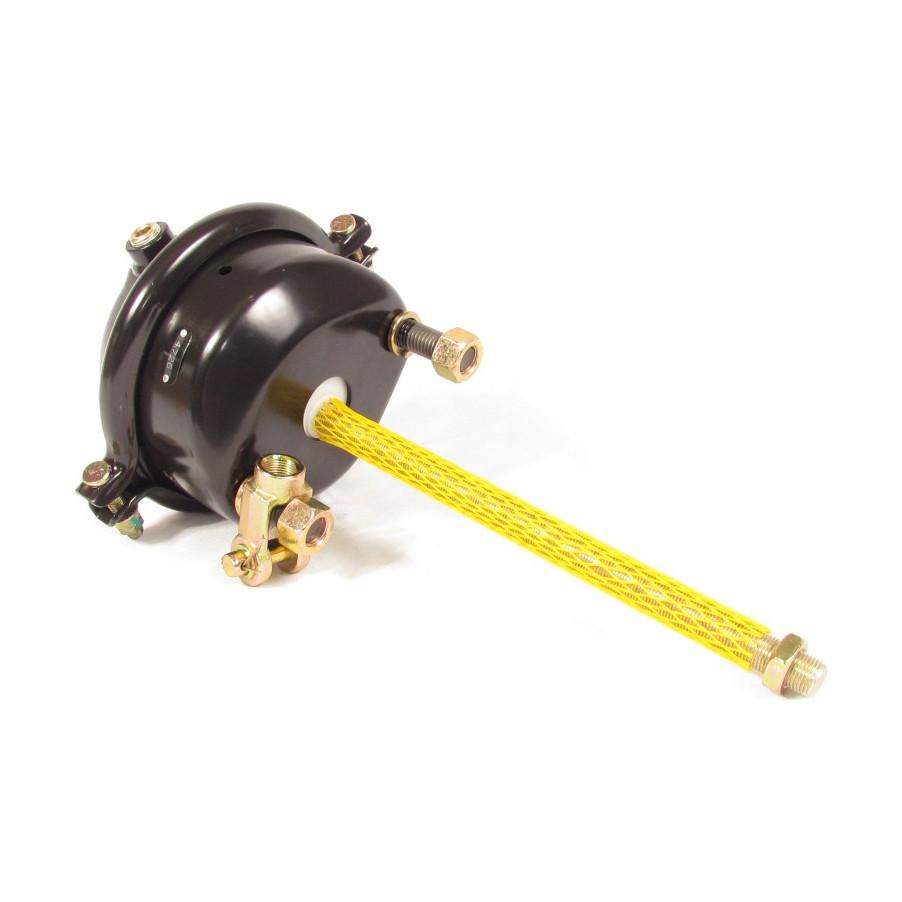

- Part Type: Air Brake Chamber
- Also Known as: Brake Canister / Brake Can / Air Brake Canister / Brake Pod / Brake Pots
- Chamber Type: Service Brake Chamber
- Model: T20, T-20, 20
- Stroke: Standard Stroke
- Stroke Lenght: 2.25 in.

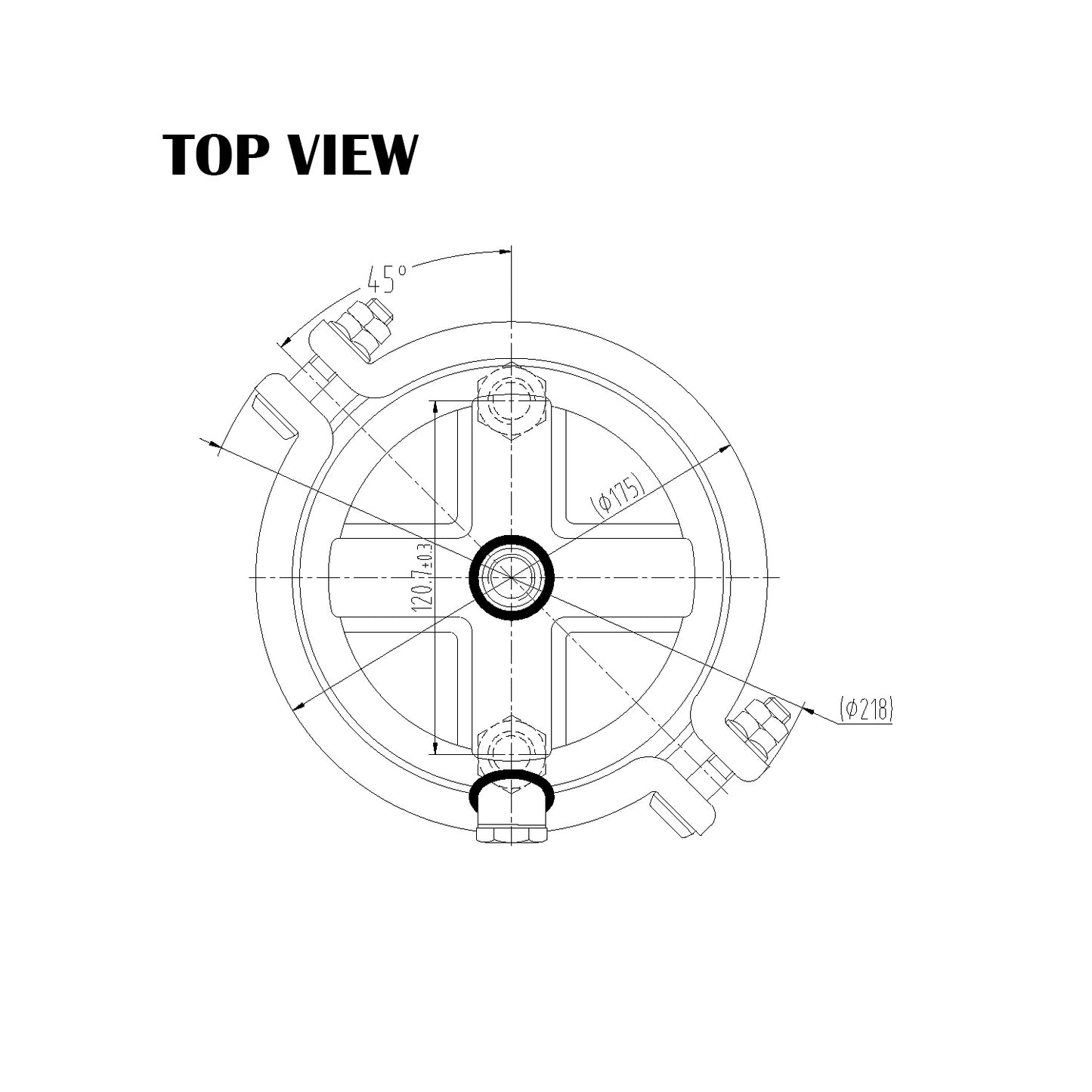

- Outside Diameter (O.D.): 7 in.
- Brake Type Support: Drum
- Serviceability: Serviceable
- Push Rod Thread: 5/8-18 UNF-2A
- Push Rod Length: 10.50 in.
- Service Port: 3/8-18 NPTF
- Emergency/Release Port: N/A
- Port Angle: 90°
- Clevis Included: Included
- Clevis Mounting: Threaded
- Maximum Pressure: 150 PSI
- Mounting Bolt Thread: 5/8-18 UNF-2A
- Mounting Bolt Length: 1.44 in. (36.6 MM)
- Brake System Compatibility: S-Cam
- Chamber Style: Single Diaphragm
- Service Chamber Joint Type: Single Clamp Band
- Automann: 179.SC20
- Bendix: 288803
- Euclid: E-20S, E-BC20S
- Flagg: 20S
- Haldex: SC20, KN36200
- Meritor: R870020
- Velvac: 30017
Dimensions Not Available.
